MC CUIR
PRINTING AND DIE CUTTING IN LINE
MC CUIR
PRINTING AND DIE CUTTING IN LINE
MC CUIR die-cutter is a « cast in one piece » machine with two
printing units
Up to 3000 s/h
Sheet size Mini : 21.65×19.69’’
(550*500 mm)
Sheet size Maxi: 51.18×66.93’’
(1300*1700 mm)
Corrugated board from 0.04 to 0.35’’ (1 to 9 mm)
Maximum die-cut and print size 49.6’’x65’’ (1260*1650 mm)
Up to 3000 s/h
Sheet size Mini : 21.65×19.69’’
(550*500 mm)
Sheet size Maxi: 51.18×66.93’’
(1300*1700 mm)
Corrugated board from 0.04 to 0.35’’ (1 to 9 mm)
Maximum die-cut and print size 49.6’’x65’’ (1260*1650 mm)
WHAT MAKES THE DIFFERENCE
FEEDER
• Feeder with independent shafts
• Vacuum from the bottom, no pull rolls, no board crush
• Correction system to adjust the board position if needed
• Easy and quick feeder adjustment
• Feeder efficiently handles warped board
PRINT UNITS
• Transport of board : vacuum and belts
• Absolute Chamber doctor blade
• Peristaltic pump
• Optimized washing to reduce water consumption
• Plate cylinders (with twist bar) and impression cylinder in nickel-plated steel
• 2 top printing units with synchronized independent motors
• Variable plate thickness
• Lateral adjustments, automatic pressure and anilox settings
• High-precision registration between printing (+/- 0.5 mm // +/- 0.025″)
DIE-CUTTING AND DELIVERY
• Universal CUIR die boards (compatible with existing die boards from MIEHLE, MRV, MARK I, MARK II)
• Inline printing and die-cutting
• High-precision registration between printing and die-cutting (+/- 0.5 mm // +/- 0.025″)
• Cutting between a bed and a cylinder

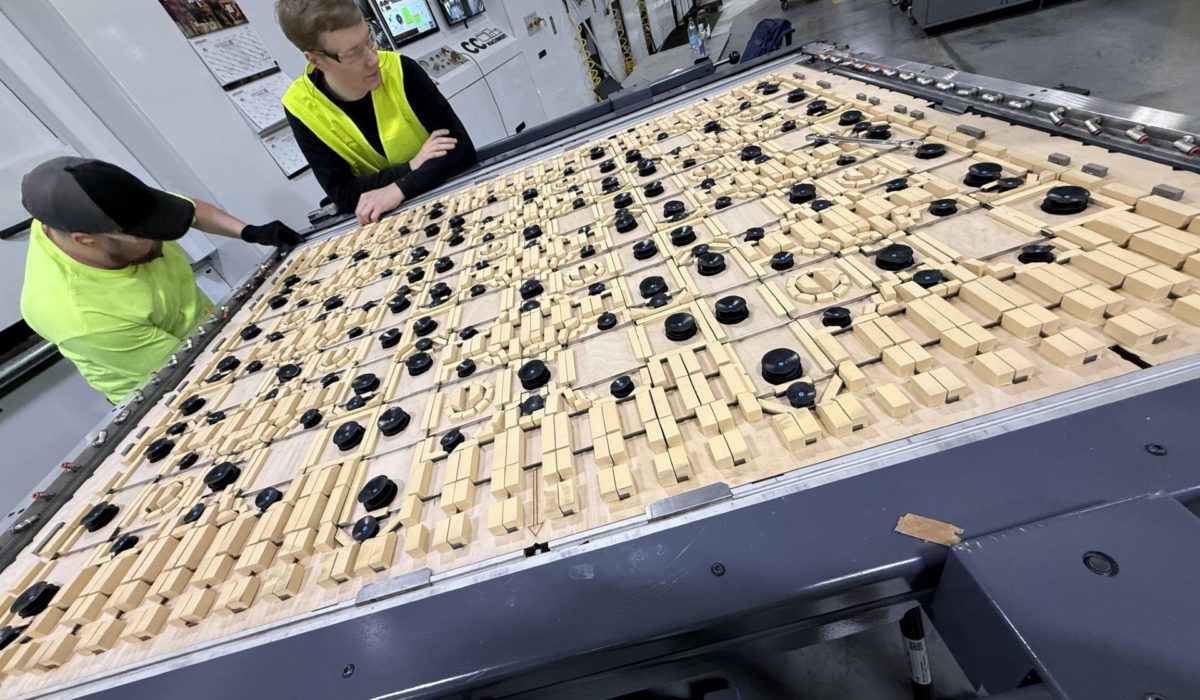

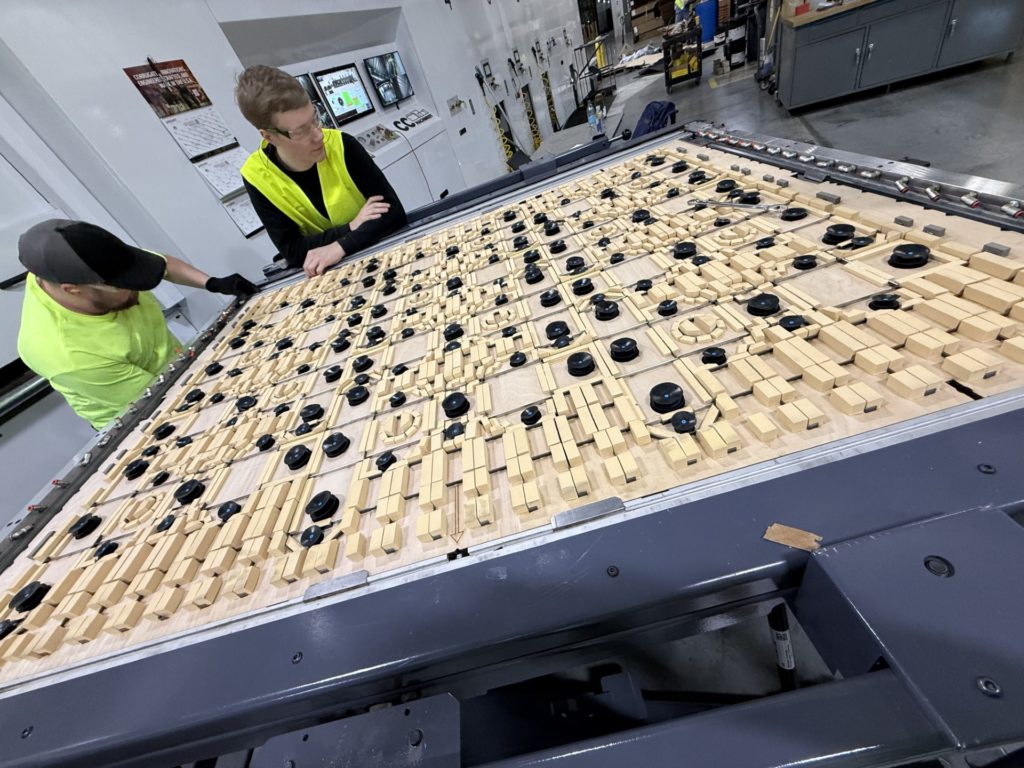

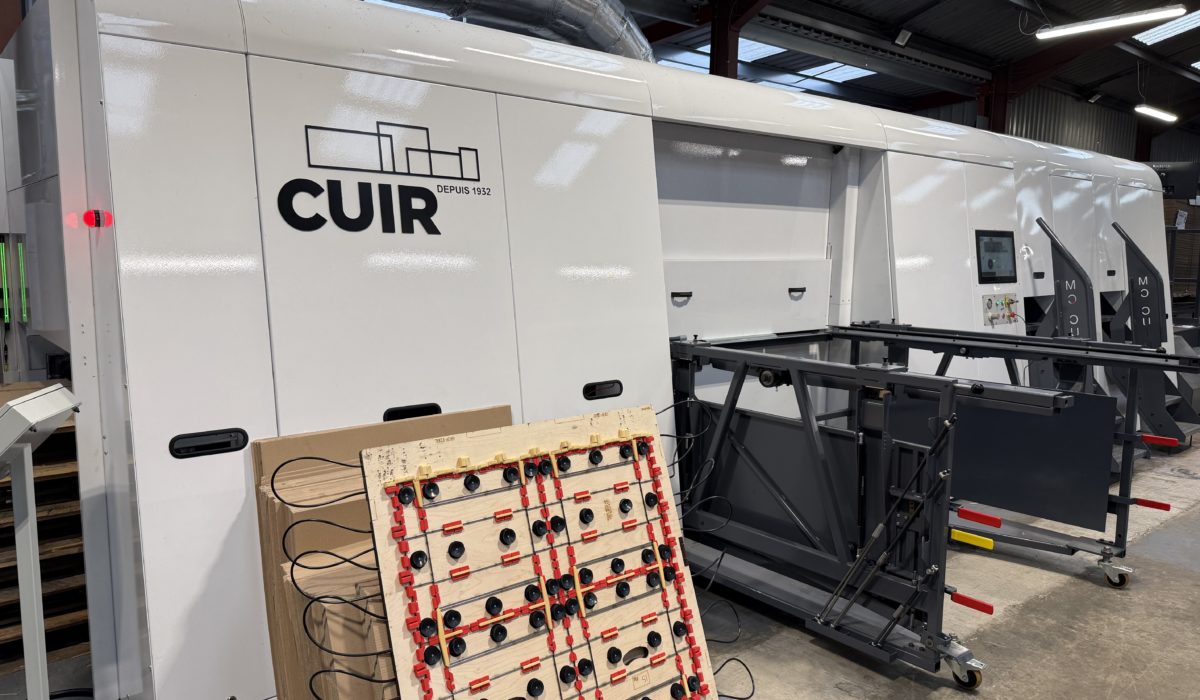

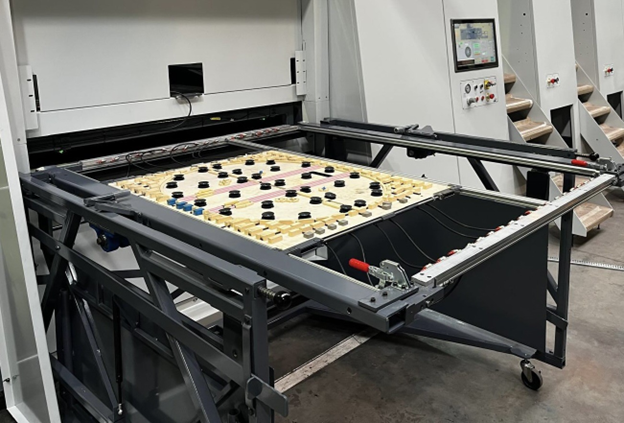

• Double carriage for pre-mounting the die boards

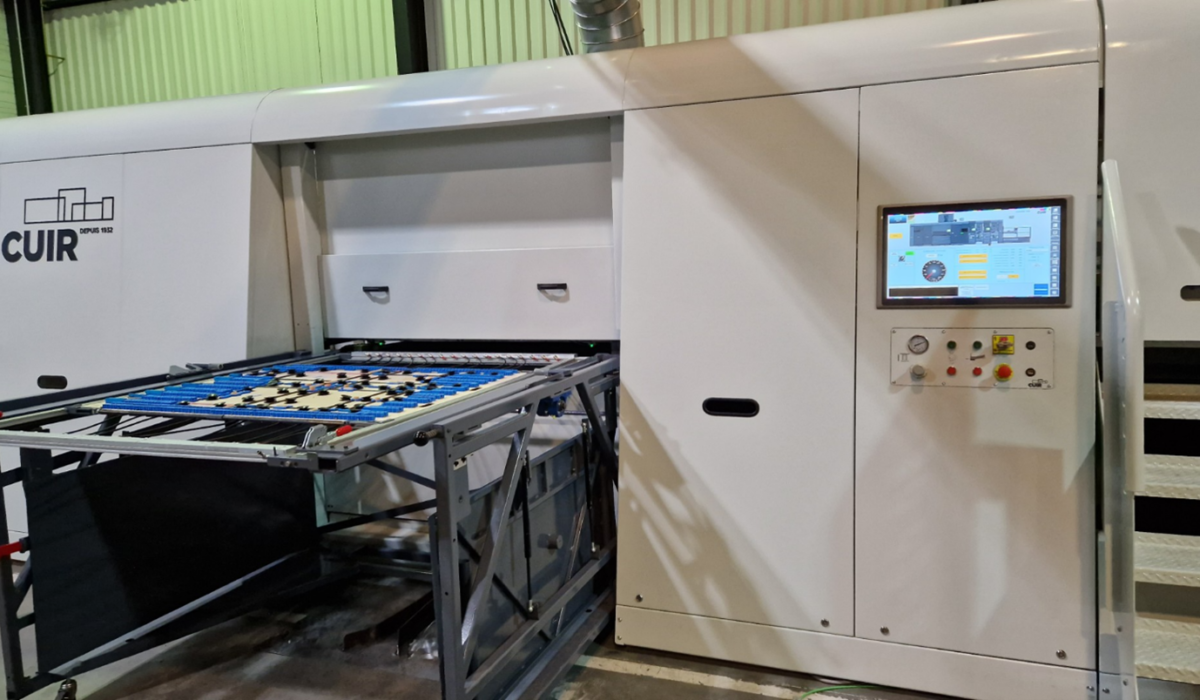

• Die boards on removable frame
• Make-Ready under the die boards
• Multi-outs delivery
• Centralized waste suction (with the option to connect to the customer’s system)
GENERAL
• Reduced production change time (less than 5 minutes without printing)
• Automatic order recall
• Remote maintenance via the Internet
• Maximum machine speeds automatically calculated based on the sheet size (between 2000 and 3000 sheets per hour)
• Ultra-fast commissioning (plug and play)
• Overseas delivery in standard containers
• Sturdiness and reliability
• No special civil engineering (no pit)
• Optimized electrical consumption with power reinjection and variable fan speed
