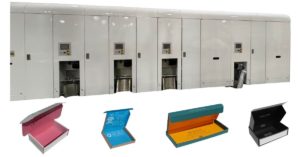

MRV I/O
INLINE PRINTER-DIE CUTTER INSIDE/OUTSIDE
MRV I/O
INLINE PRINTER-DIE CUTTER INSIDE/OUTSIDE
Flatbed die cutting machine with high graphics independent bottom
or top printing units
CUIR has innovated the MRV flexo-die cutter to provide inside/outside printing in a single pass with our MRV I/O solution. With decades of experience manufacturing flatbed die cutting machines since 1932, CUIR is your solution partner for high quality corrugated equipment. Review its features and request a consultation today to discuss.
UP TO
4.000 S/H
SHEET SIZE MINI:
21.65 X 19.68 ”
SHEET SIZE MAXI:
51,18 X 66.14”
CORRUGATED BOARD:
FROM 0.035 TO 0.27”
UP TO 4.000 S/H
SHEET SIZE MINI:21.65×19.68’’
SHEET SIZE MAXI:51.18×66.14’’
CORRUGATED BOARD:FROM 0.035 to 0.27’’
WHAT MAKES THE DIFFERENCE
CUIR flatbed die cutting machines are made 100% in France. The fully equipped corrugated system offers inline full-color flexo printing and precision die cutting to meet your production goals. For high end, high quality corrugated, choose the CUIR MRV I/O.
• In line printing and die-cutting
• Vacuum rolls feeder with direct brushless motors (no trim)
• Automatic register control
• Top or bottom printing (register between colors +/- 0.01”(+/- 0.25 mm)
• Chamber doctor blade inking system in carbon fiber from Absolute
• Plate and impression cylinders nickel coated
• Independent printing units with pivoting transfer (top printers)
• Print plate thickness according to machine
• Cutting between bed and cylinder
• Centralized settings through Supervision from Wonderware
• Reduced set-up time (save settings and order memory)
• One of a kind print-to-cut register
• Specific register control for litho-laminated products
• Multi-outs delivery in counted batches
• Universal CUIR dies
• Web based technical assistance via data link
Options : IR and/or UV dryers, cameras, automatic washing up system, quick change of anilox rolls, dual face dust remover
• In line printing and die-cutting
• Vacuum rolls feeder with direct brushless motors (no trim)
• Automatic register control
• Top or bottom printing (register between colors +/- 0.01’’(+/- 0.25 mm)
• Chamber Dr Blade inking system in carbon fiber from Absolute
• Plate and impression cylinders nickel coated
• Independent printing units with pivoting transfer (top printers)
• Print plate thickness according machine
• Cutting between bed and cylinder
• Centralized settings through Supervision from Wonderware
• Reduced set-up time (memorized settings and jobs)
• One of a kind print to cut register
• Specific register control for litho laminated products
• Multi-outs delivery in counted batches
• Universal CUIR dies
• Web based technical assistance via data link
Options : IR and/or UV dryers, cameras, automatic washing up system, quick change of anilox rolls, dual face dust remover
